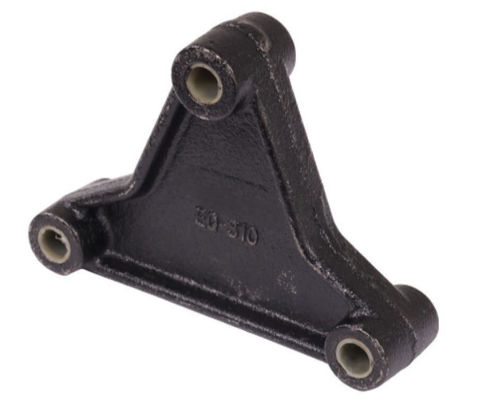

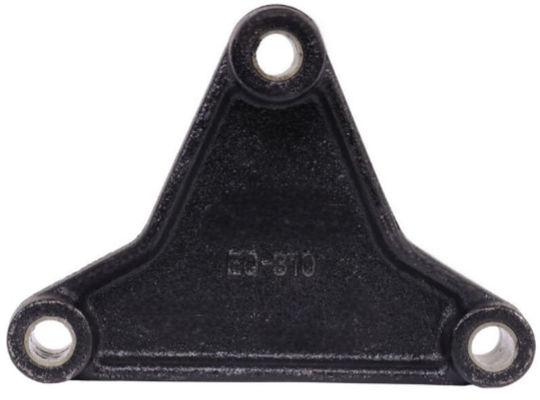

6" Long Triangular Equalizer For 1-3/4" Double Eye Springs - 6" Long - 9/16" Center Hole

6" Long triangular equalizer connects double-eye springs on tandem- or triple-axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Designed primarily for RVs and mobile homes.

Features:

• Connects double-eye springs on dual- or triple-axle trailers
  • Springs attach to ends of equalizer with shackle straps (sold separately)
  • Equalizer is suspended from center hanger (sold separately)
• Transfers load and sudden impacts from one axle to another by permitting movement between the axles
  • Distributes weight evenly
  • Results in smooth ride for trailer
• Used primarily in RV and mobile-home industry

Specs:

• Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
• Center bolt hole diameter: 9/16"
• Left and right bolt hole diameter: 9/16"

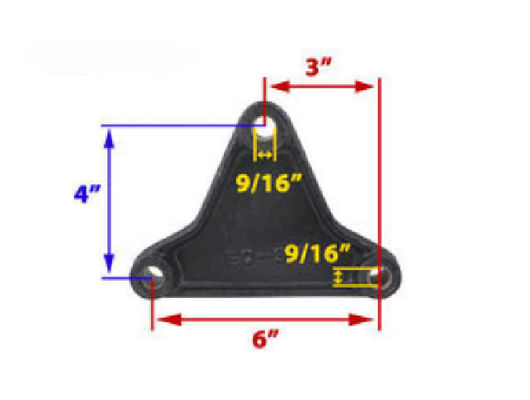

• Dimensions:
  • Distance between outer shackle bolt holes (center on center): 6"
  • Distance between hanger bolt hole and outer shackle bolt hole (center on center): 3"
  • Height from shackle bolt hole to hanger bolt hole: 4"
