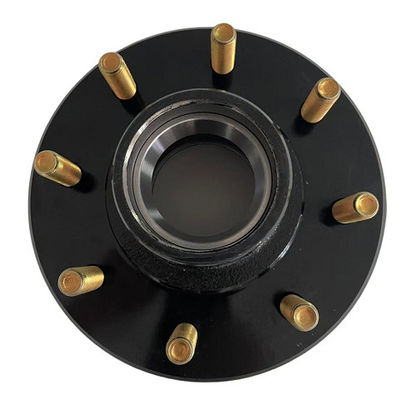

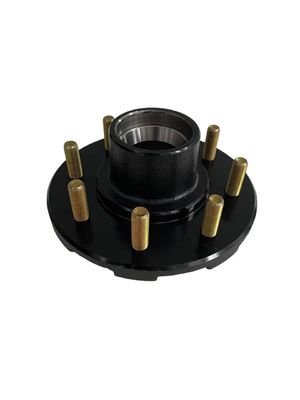

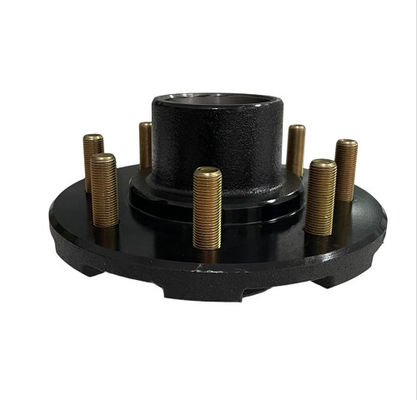

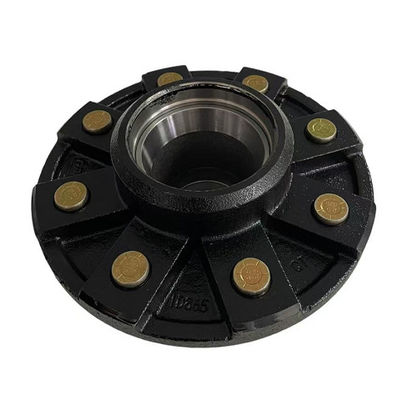

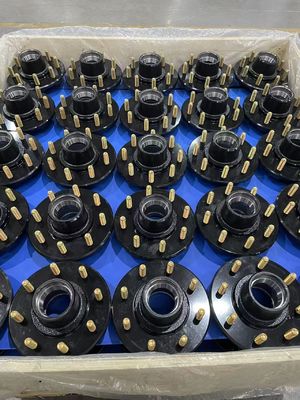

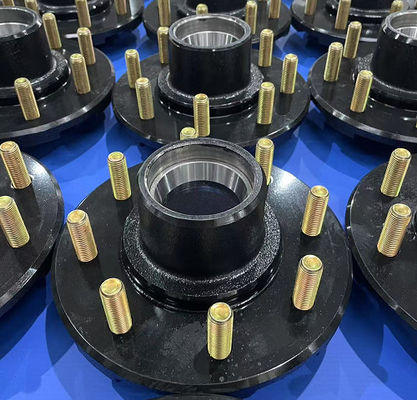

Casting Trailer Idler Hub 7000 Lb Axle Hub 8 On 6-1/2″ 7k Trailer Hub Assembly

Trailer Idler Hub, 7000 lb Axle, 8 on 6-1/2″, Complete

We are an enterprise specializing in the production and sale of trailer axles, trailer drums, trailer brakes and accessories.

We can customize products according to your drawings.

Hub is designed for use on trailer idler axles. Fits 7,000-lb axles . Inner races(25520) and outer races (14276), studs included.

Features:

• Trailer hub assembly fits idler axles
• 25580 Inner Races(Already Press In)
• 14276 Outer Races(Already Press In)
• 1/2''-20 Studs(Already Press In)
• 8 on 6.5'' Hub

Specs:

• Application: 7,000-lb trailer axles with 7K spindles
• Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
• Wheel size: 15.50" to 16.50"
• Bolt pattern: 8 on 6.5"
• Wheel stud dimensions: 1/2" diameter
• Grease cap flange diameter: 2.72"
• Weight capacity: 3,500 lbs
• Limited 1-year warranty
