6.5" Electric Trailer Brake Drums 7000 Lb 8 Bolt On Trailer Brakes And Drums

7,000 lb 8 Bolt on 6.5" Electric Brake Drum

We are an enterprise specializing in the production and sale of trailer axles, trailer drums, trailer brakes and accessories.

We can customize products according to your drawings.

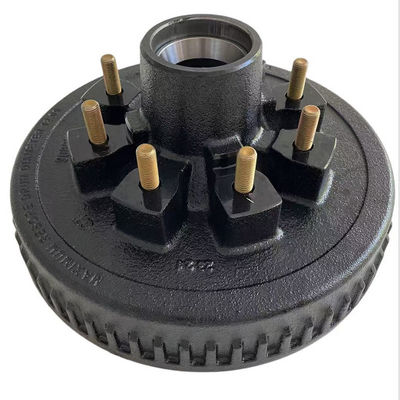

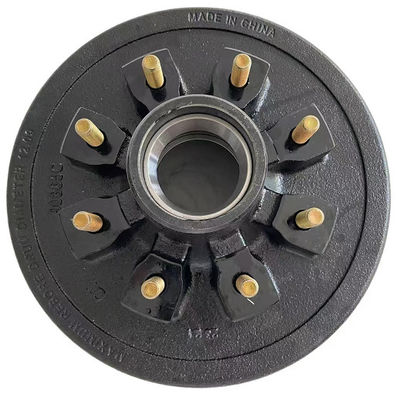

Brake drum is designed for use on trailer brake drum axles. Fits 7,000-lb axles with 7.0K spindles. Inner race(25520), outer race (14276) and studs press in.

Features:

• Trailer Brake Drum assembly fits brake drum axles
• 25520 Inner Races(Already Press IN)
• 14276 Outer Races(Already Press IN)
• 1/2''-20 Studs (Press In)
• 8 on 6 1/2'' Brake Drum

Specs:

• Application: 7,000-lb trailer axles with #7K spindles
• Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
• Wheel size: 15.5" to 16.5"
• Bolt pattern: 8 on 6 1/2"
• Wheel stud dimensions: 1/2" diameter x 1-5/16" long
• Grease cap flange diameter: 2.72"
• Weight capacity: 3,500 lbs
• Limited 1-year warranty
